| Model 型号 |
NominalFocal spotValue 焦点标称值 |
Rated Power 额定功率(W) |
Rated Voltage 额定电压(KV) |
Target Angle 靶角(°) |
Anode Heat Capacity 阳极热容(kHU) |
Max Power Continuously 最大连续功率(W) |
Max Tube current 最大管电流(mA) |
Outline Dimension 外形尺寸LxD(mm) |
With Lead Pipes Size 带铅套尺寸 LxD(mm) |
Note 注 |
| XD1-2.3-110 | 2.3 | 4400 (0.1s) | 110 | 19 | 42 | 235 | 48 | 177×Ф50 | ||
| XD2-1.5-90 | 1.5 | 2250 (0.1s) | 90 | 25 | 14 | 170 | 22 | 119×Ф35 | ||
| XD3-2.6-110 | 2.6 | 4400 (0.1s) | 110 | 19 | 49 | 250 | 57 | 189×Ф50 | ||
| XD3A-2.6-110 | 2.6 | 4400 (0.1s) | 110 | 19 | 49 | 250 | 57 | 189×Ф50 | ||
| XD4-1.5/3.0-125 | 1.5/3.0 | 4000/7800 (0.1s) | 125 | 19 | 77 | 380 | 40/78 | 219×Ф60 | OX125-M15 | |
| XD4A-0.6/1.5-125 | 0.6/1.5 | 1300/5000 (0.1s) | 100 | 12 | 79.8 | 275 | 14/52 | 170×Ф60 | ||
| XD5-0.5-100 | 0.5 | 1650 (0.1s) | 100 | 5 | 35 | 200 | 40 | 150×Ф45 | SR90 | |
| XD5-0.5-100（12） | 0.5 | 1650（0.1s） | 125 | 12 | 49 | 250 | 40 | 150×Ф45 | OPX105-12 OX/115-15L D-059 | |
| XD5-0.5-110 | 0.5 | 2200 (0.1s) | 110 | 5 | 49 | 225 | 36 | 152.5×Ф45 | D-054 | |
| XD7-2.0-50 | 2 | 600(0.1s) | 50 | 32 | 22.4 | 250 | 20 | 185×Ф40 | 外铍窗管 | |
| XD9-2.2-110 | 2.2 | 4400 (0.1s) | 110 | 19 | 49 | 225 | 84 | 159×Ф50 | OX/105-2 | |
| XD10-1.2-100 | 1.2 | 3200 (0.1s) | 100 | 16 | 19.6 | 180 | 40 | 129×Ф41 | D-124 | |
| XD11-0.4-70 | 0.4 | 430(1s) | 70 | 12.5 | 6.3 | 200 | 12.5 | 80×Ф30 | 80×Ф42 | OX/70-4 D-041 |
| XD11-0.4-80 | 0.4 | 430(1s) | 80 | 12.5 | 6.3 | 200 | 12.5 | 83×Ф30 | 83×Ф42 | |
| XD12-0.8-70 | 0.8 | 560(1s) | 70 | 19 | 9.8 | 110 | 11 | 80×Ф30 | OX/70 | |
| XD12-0.8-90 | 0.8 | 560（1s） | 90 | 19 | 9.8 | 110 | 11 | 85×Ф30 | 85×Ф42 | OX/80-0.8 |
| XD13-0.6/1.5-110 | 0.6/1.5 | 725/4400 (0.1s) | 110 | 15 | 42 | 230 | 7.5/50 | 160×Ф50 | OX110/5 DF-151 | |
| XD13-0.5/1.6-125 | 0.5/1.6 | 700/4000（1s） | 125 | 16 | 56 | 600 | 15/60 | 160×Ф50 | 169×Ф62 | DF-161SBR |
| XD14-1.2-125 | 1.2 | 2700（1s） | 125 | 16 | 50 | 250 | 40 | 157×Ф45 | D-125 | |
| XD22-2.8-110 | 2.8 | 6900 (0.1s) | 110 | 19 | 42 | 250 | 89 | 170×Ф50 | 170×Ф62 | OX/105-4 OX/105-6 |
| XD23-0.6/1.8-125 | 0.6/1.8 | 1100/5000 (0.1s) | 125 | 15 | 42 | 270 | 11/50 | 160×Ф50 | 160×Ф62 | OX110/15 |
| XD25-0.6/1.5-125 | 0.6/1.5 | 1620/5000 (0.1s) | 125 | 12 | 42 | 275 | 15/50 | 160×Ф50 | OX110/5 |

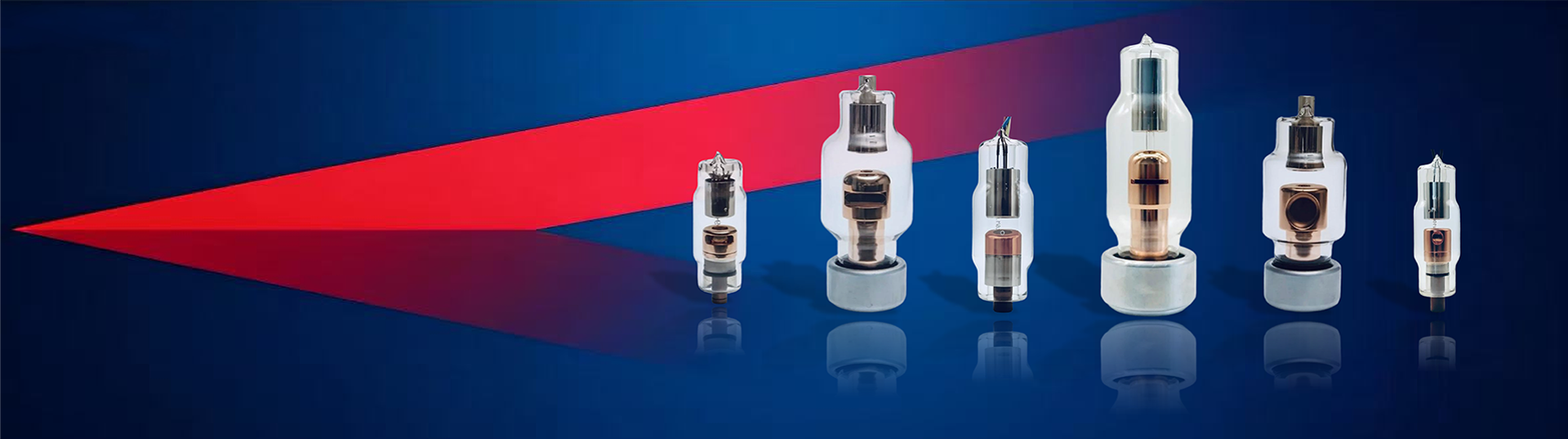

Product
